IGBT Solid State Induction Heating Equipment For Aluminium Bar Forming With Water Cooling System

Delivery Time : 60 days

Cooling Water Flow : 27L/min, 32L/min, 40L/min, 33L/min, 56L/min

Place of Origin : Sichuan

Working Frequency : 10~30KHZ

Certification : ISO9001:2015/CE

Rated Output Power : 30KW, 40KW, 60KW, 80KW, 120KW

Price : $3,500-4,000

Input Power : 380V/50Hz 3 phases 4 lines

Brand Name : Duolin

Work piece diameter : 20mm

MOQ : 1

Power Capacity : 38KVA, 50KVA, 75KVA, 100KVA, 150KVA

Contact Now

IGBT Solid State Induction Heating Equipment for Aluminium Bar Forming with Water Cooling System
Product Overview
IGBT Solid State Induction Heating Equipment For Aluminium Bar Forming With Water Cooling System

Duolin supplies induction brazing machines for various applications including saw blades, carbide tips, copper tubes, aluminum parts, and rotors. Our equipment ranges from 7kW to 800kW with frequencies from 1KHz to 400KHz.

We offer induction heating equipment ranging from 7kW to 800kW. Through a combination of standard products and innovative engineering, DUOLIN will meet your most demanding production and quality needs. With a wide range of field-proven solutions, our engineering team can provide the experience and expertise to optimize your process.

IGBT Solid State Induction Heating Equipment For Aluminium Bar Forming With Water Cooling System

IGBT Solid State Induction Heating Equipment For Aluminium Bar Forming With Water Cooling System

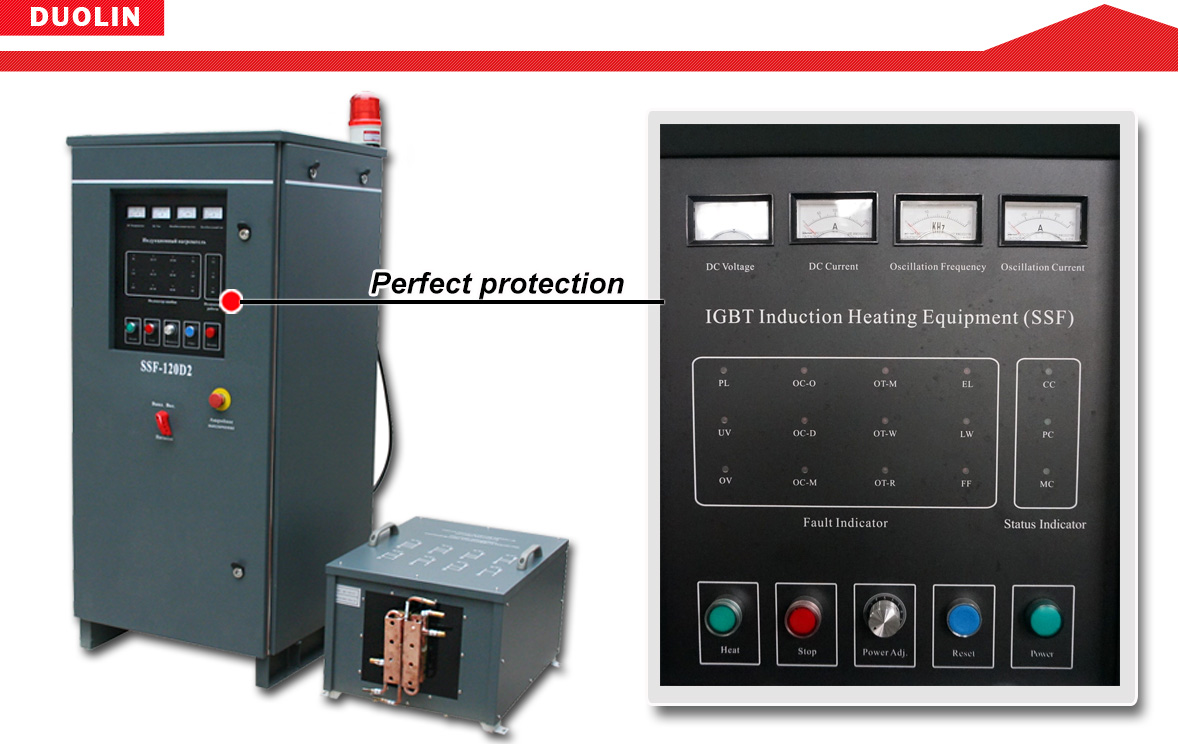

Stability & Reliability
IGBT Solid State Induction Heating Equipment For Aluminium Bar Forming With Water Cooling System

Our induction heating systems are engineered for maximum stability and reliability in industrial environments.

Technical Parameters
Model SSF-30 SSF-50 SSF-60 SSF-80 SSF-120
Rated Output Power 30KW 40KW 60KW 80KW 120KW
Working Frequency 10~30KHZ 10~30KHZ 10~30KHZ 10~30KHZ 10~30KHZ
Power Capacity 38KVA 50KVA 75KVA 100KVA 150KVA
Input Power 380V/50Hz 3 phases 4 lines (I neutral line)
Working Voltage 342V-430V
Input Current 48A 63A 97A 135A 195A
Cooling Water Flow - Power unit 27L/min (0.1 MPa) 32L/min (0.1 MPa) 40L/min (0.1 MPa) 33L/min (0.1 MPa) 56L/min (0.1 MPa)
Cooling Water Flow - Transformer 26L/min (0.1 MPa) 29L/min (0.1 MPa) 41L/min (0.1 MPa) 32L/min (0.1 MPa) 68L/min (0.1 MPa)
Weight - Power unit 39KG 60KG 68KG 99KG 130KG
Weight - Transformer 29KG 34KG 53KG 63KG 88KG
Dimension - Power unit 365*500*790mm 405*505*860mm 400*540*970mm 750*500*1040mm 550*600*1380mm
Dimension - Transformer 320*320*310mm 320*360*310mm 410*470*385mm 410*470*385mm 405*555*380mm
Our Services
IGBT Solid State Induction Heating Equipment For Aluminium Bar Forming With Water Cooling System

We provide comprehensive technical support, maintenance services, and spare parts to ensure optimal performance of your induction heating equipment.

Company Information
IGBT Solid State Induction Heating Equipment For Aluminium Bar Forming With Water Cooling System IGBT Solid State Induction Heating Equipment For Aluminium Bar Forming With Water Cooling System IGBT Solid State Induction Heating Equipment For Aluminium Bar Forming With Water Cooling System IGBT Solid State Induction Heating Equipment For Aluminium Bar Forming With Water Cooling System

Duolin Brand Induction Heating Machine Factory

Duolin is a famous brand of Induction Heating Machine in China since 1996. The company built factory buildings in 2002 and started internal trade in 2009, accumulating more than 20 years of experience in induction heating.

Our induction heating equipment uses IGBT series resonance technology for energy efficiency, with power ranging from 7-1500KW and frequency from 0.5-250KHz. Widely used for hot forging, coating, brazing, hardening, and heat treatment applications.

Duolin engineering team will offer customers the most suitable induction heating solutions!

IGBT Solid State Induction Heating Equipment For Aluminium Bar Forming With Water Cooling System

Applications & Industries
Applications:
  • Billet hot forging plant - full heating and local heating, diameter 8-200 mm
  • Heat treatment plant - for gear, pin shaft, automotive parts surface hardening
  • Copper tube, saw blade machine tool brazing, pipe heating for bending and coating
  • Induction heating for shrink fitting, annealing, normalizing
Industries:

Induction heating is widely used in automotive industry, oil and gas industry, fasteners manufacture, tube and pipe heating, ship building industry, package sealing industry, wire and cable heating, spring making, and more.

Frequently Asked Questions
1. Why DUOLIN?

QUALITY IS OUR CULTURE. DUOLIN puts this ideal into every line and circuit.

2. How many years can it work?

Many factors affect lifespan, usually 5-10 years, depending on your operation, cooling water quality, maintenance, etc.

3. How many days to get spare parts?

Usually shipped within 1-2 days.
